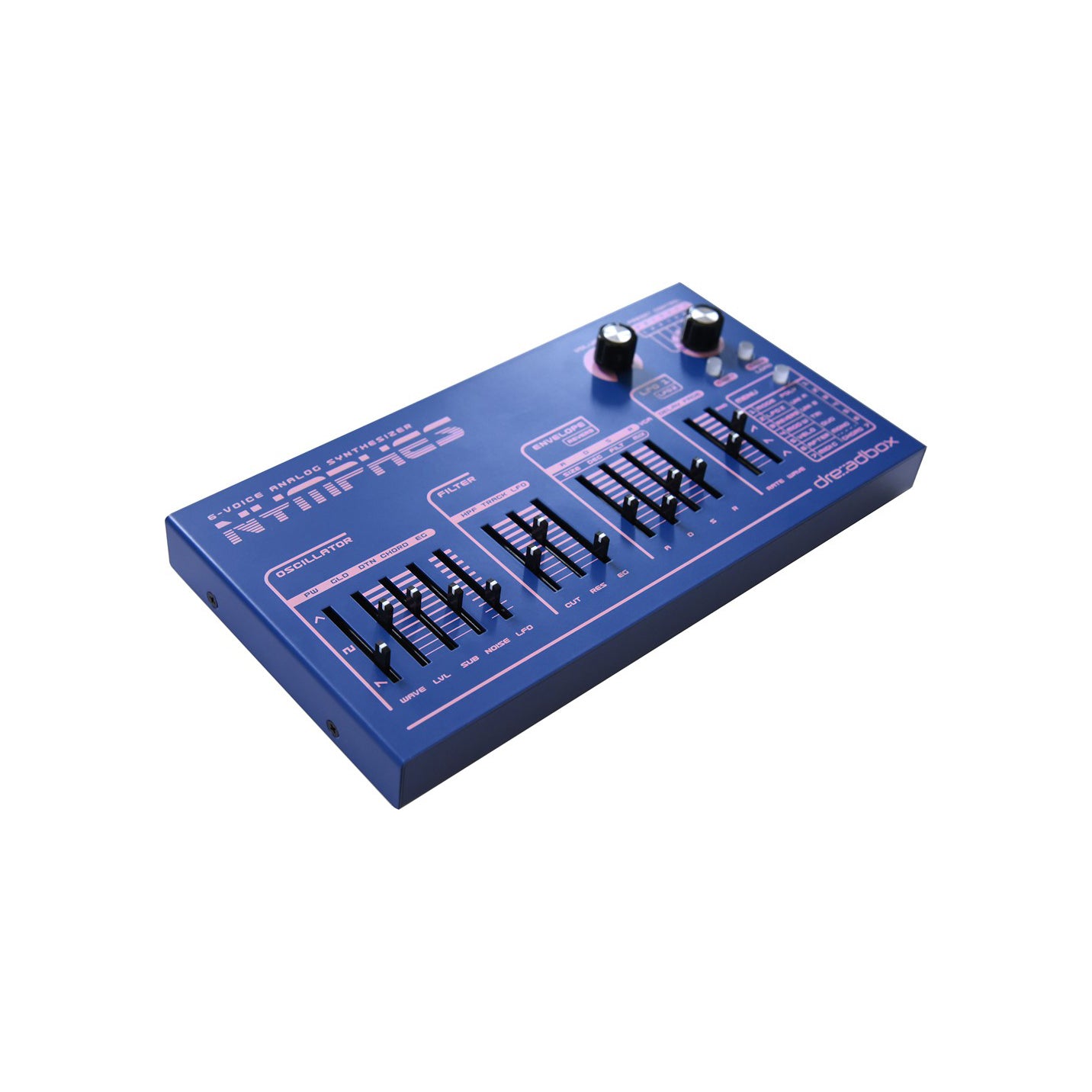

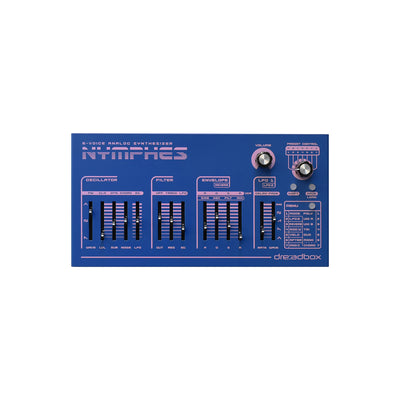

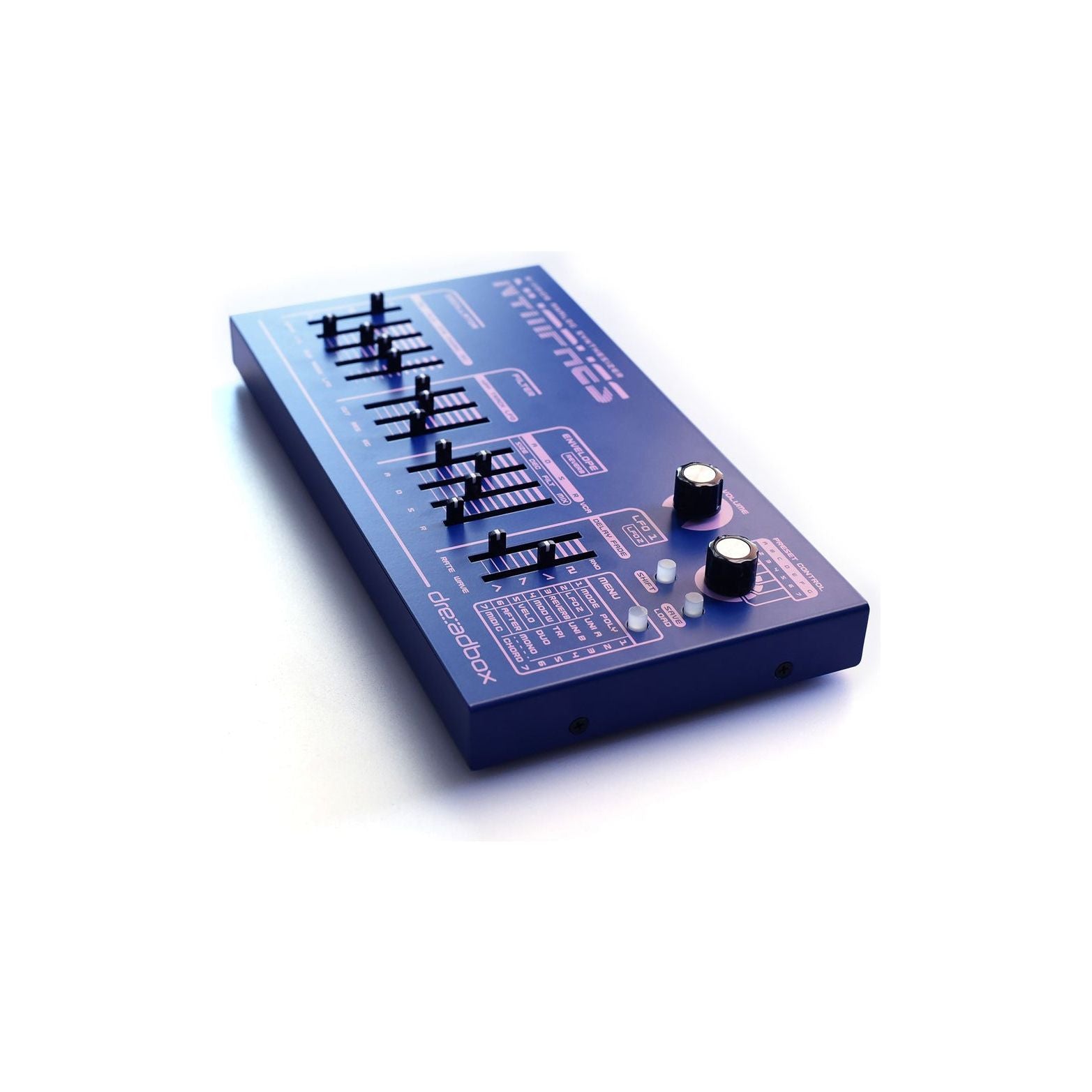

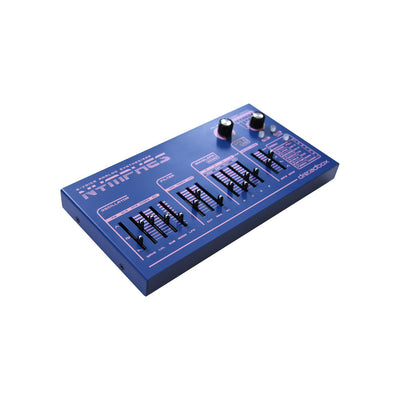

Nymphes

6-voice polyphonic analog synthesizer. 1x VCO, 1x sub oscillator, 1x LFO, 2x envelope generators, LP and HP filter per voice. 6x different playing modes. Digital reverb. MPE and polyphonic aftertouch support. 98 presets slots. USB powered.

Nymphes är en 6-rösters polyfonisk analog synthesizer som design och ljudmässigt påminner om Juno-106. Per röst kan Nymphes skryta med en VCO, en sub-oscillator, brusgenerator, en LFO, två envelopes, ett 24dB/oktav lågpassfilter samt ett 6dB/oktav högpassfilter. Nymphes har sex olika spellägen - Poly, Unison 6, Unison 4, Tri-Phonic, Duo-Phonic och Mono. Synten är även utrustad med ett digitalt reverb, 98 minnesplatser, varav 49 fabriksljud, samt stöd för MPE och polyfonisk aftertouch.

• All Analog Synthesizer (except for the reverb)
• 6 Voices Polyphony
• Lush Digital Reverb (developed by Dreadbox)

• 12 Envelopes and 7 LFOs (2 Envelope/voice, 1 LFO/voice + 1 generic LFO)

• 6 different playing modes

• 98 Presets Memory (49 factory and 49 user)

• MIDI over USB or via DIN5 with Full CC in and out documentation

• MPE and Polyphonic Aftertouch Support, MIDI Channel Learn

• Compact, USB powered for maximum portability

Features per voice:

• 1x VCO with Wave Forming

• 1x Sub Oscillator

• Noise generator
• 1x LFO per voice with: Key track, Fade In and Fade out, 5 waveforms and wide frequency (into the FM range)

• 2x Envelope Generators
• 24dB/octave Low Pass Resonant Filter with accurate tracking

• 6dB/octave High Pass Non-Resonant Filter

Common voice features:

• 1x common LFO (named LFO2) that can target any and multiple parameters with different amount to each one at the same time , with: Key track, Fade In and Fade out, 5 waveforms and Wide Frequency (into the FM range)

• 7x active Chords that you can edit, modulate and store on each preset

• Modulation wheel, Velocity and Aftertouch (monophonic) can target any and multiple parameters with different amount to each one at the same time

Included in the box:

• USB cable (A to B)

• DIN5 to 3.5mm adapter (specs as found at midi.org)

• Quick Start Guide

• Menu Map

Specifications and connections:

• USB powered (1.5 Watts)

• 50 Playing hours with 20,000mA portable power bank


• MIDI IN via USB or DIN5


• 3,5 mm Mono TS Jack Out


• 6,35 mm Headphones Out
