DIGITAL CLARITY, ANALOG WARMTH
Pure2 is a high-end mastering converter, powered by Antelope Audio’s legendary clocking and pristine analog circuitry
Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.
A/D CONVERSION
Improved overload handling for smoother clipping and analog warmth, handled by PCM4222
D/A CONVERSION
Dual DAC architecture for enhanced stereo imaging and signal-to-noise ratio
64-BIT MASTER CLOCKING
Sharp conversion timing via 4th gen AFC jitter management technology
HIGH-END D/A
Dedicated D/A converter for greater convenience, allows monitoring a secondary source
TRANSPARENT ANALOG MONITORING
A -1dB stepped relay attenuator with 0.05dB precision and full bypass option
SOFTWARE CONTROL
Super intuitive OS X & Windows compatible software panel

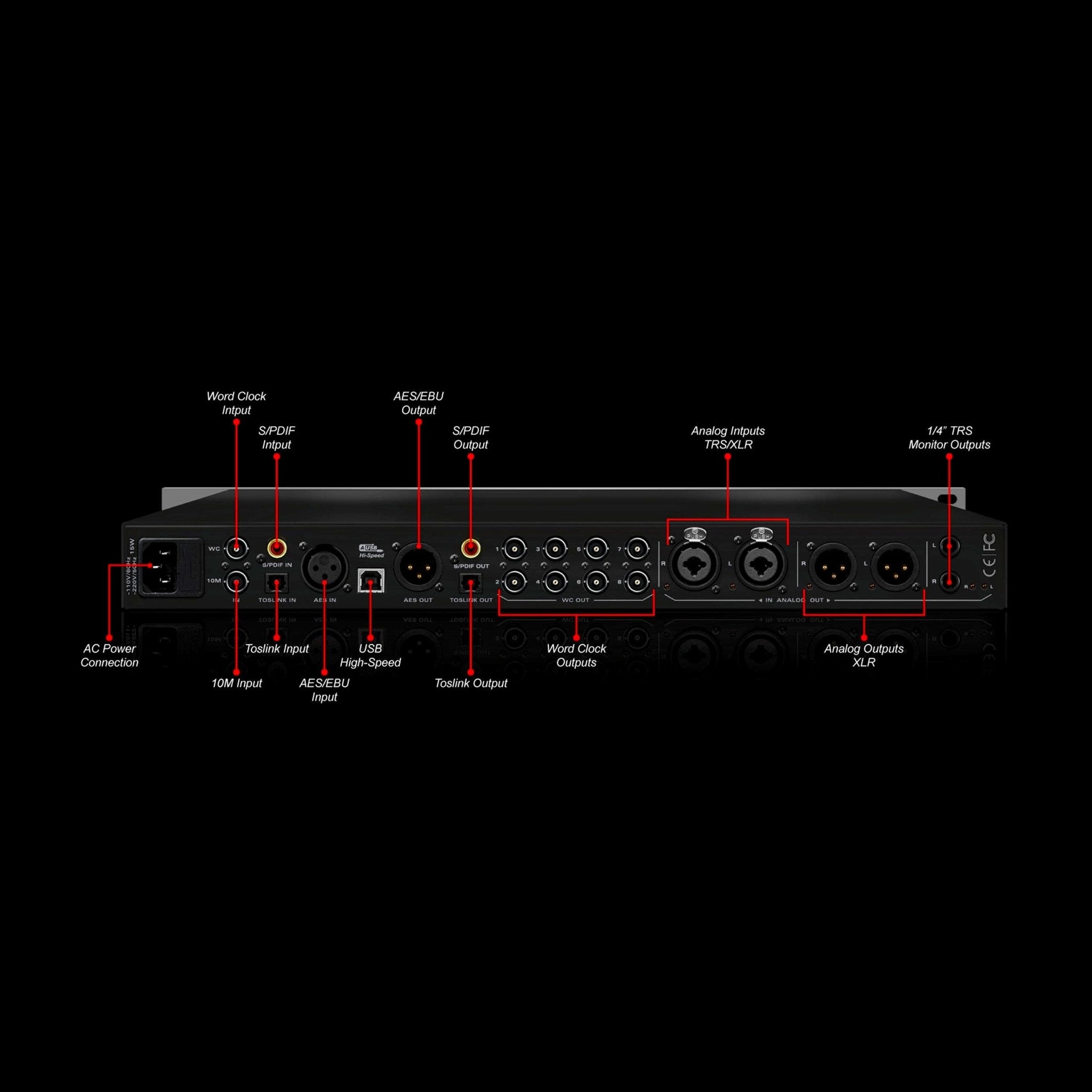

Analog Inputs
2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu
Digital Inputs
1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x TOSLINK on optical fiber: up to 96kHz
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Analog Outputs
1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu 1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS) 1 x 1/4 TRS Front Headphones 20dBu
Digital Outputs
- 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
- 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
- 1 x TOSLINK on optical fiber: up to 96kHz
Word Clock Outputs
- 8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
USB I/O
- USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz,
- 4 channels I/O for playback and 2 channels I/O for record, Type B
External Reference Clock
- 1x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
- 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
A/D Converter
Dynamic Range: 122dB THD+N: -105dB
D/A Converters
- Main DAC Dynamic Range 127dB; THD+N -107dB
- Monitor DAC Dynamic Range 120dB; THD+N -103dB
- Headphones DAC Dynamic Range 120dB; THD+N -100dB
Atomic Clock Input
10MHz @ 1Vpp, BNC
Sample Rates
(kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192
