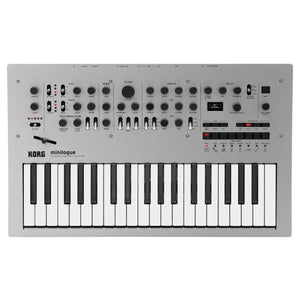

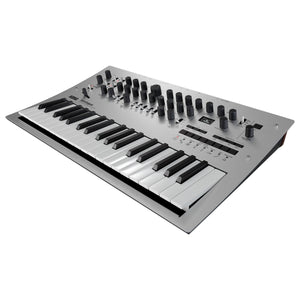

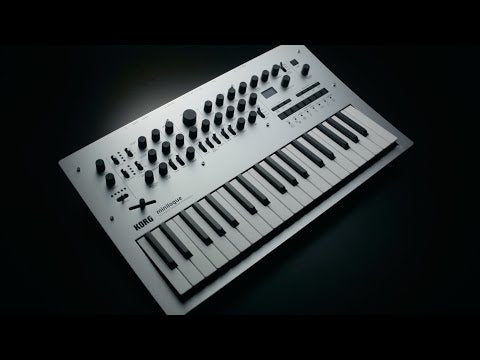

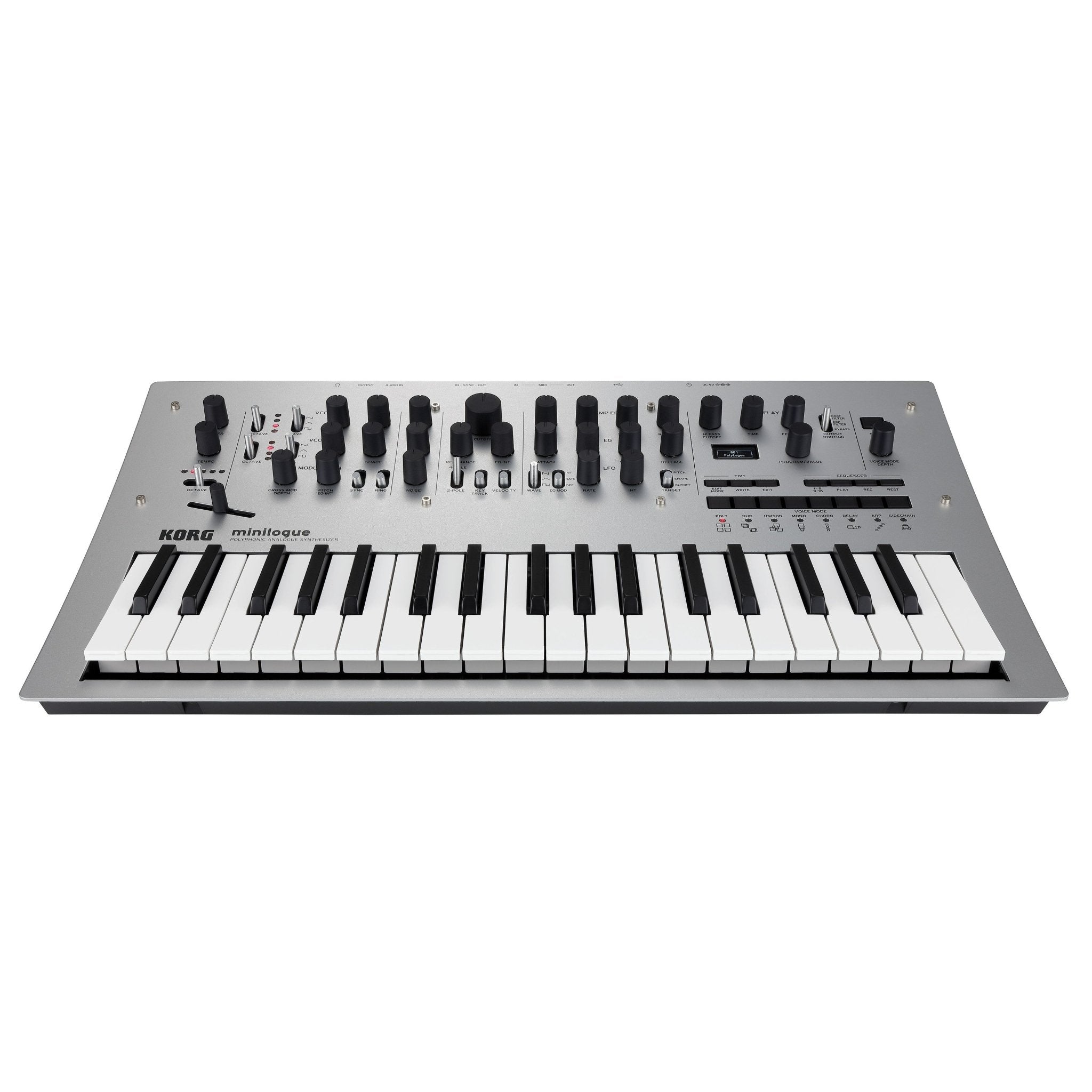

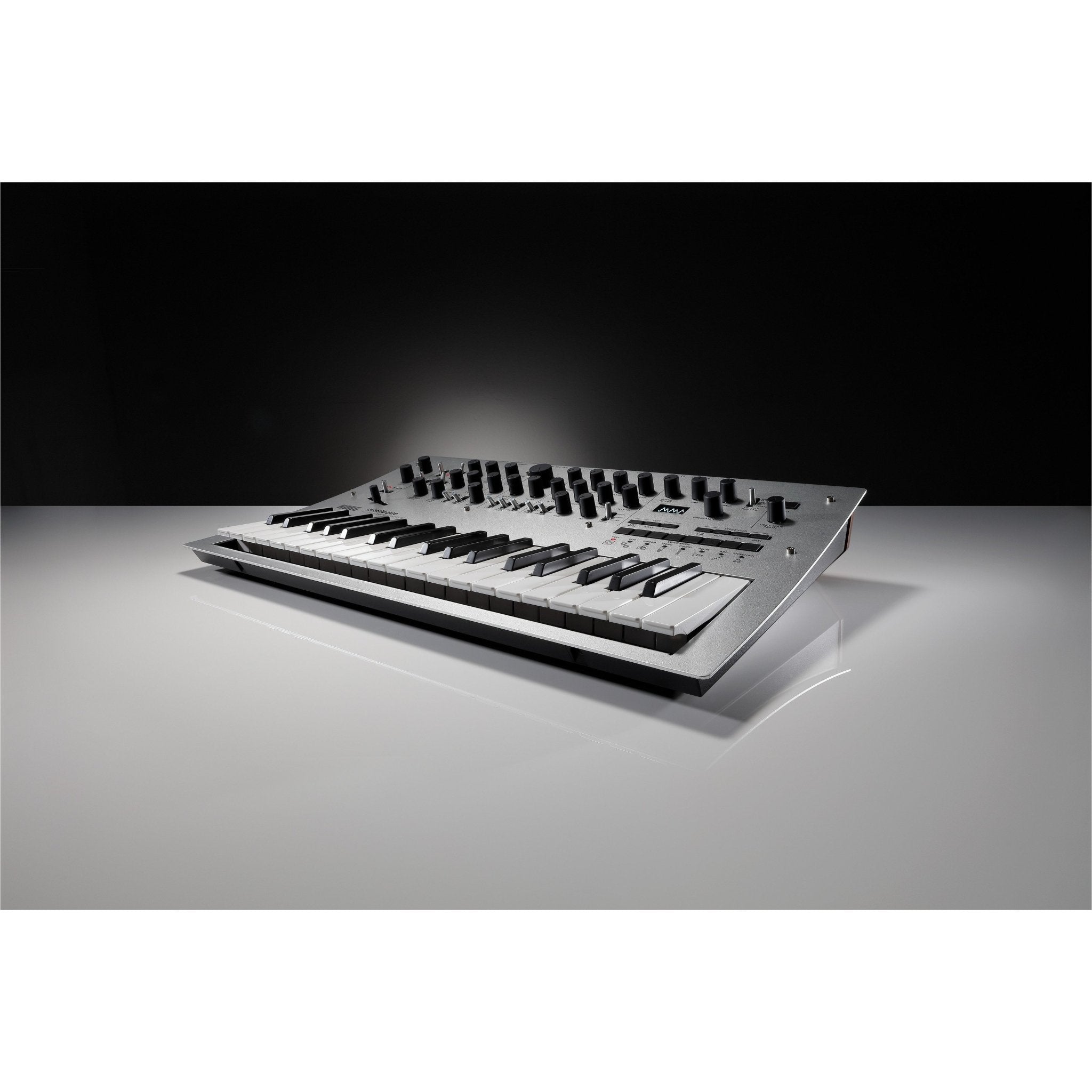

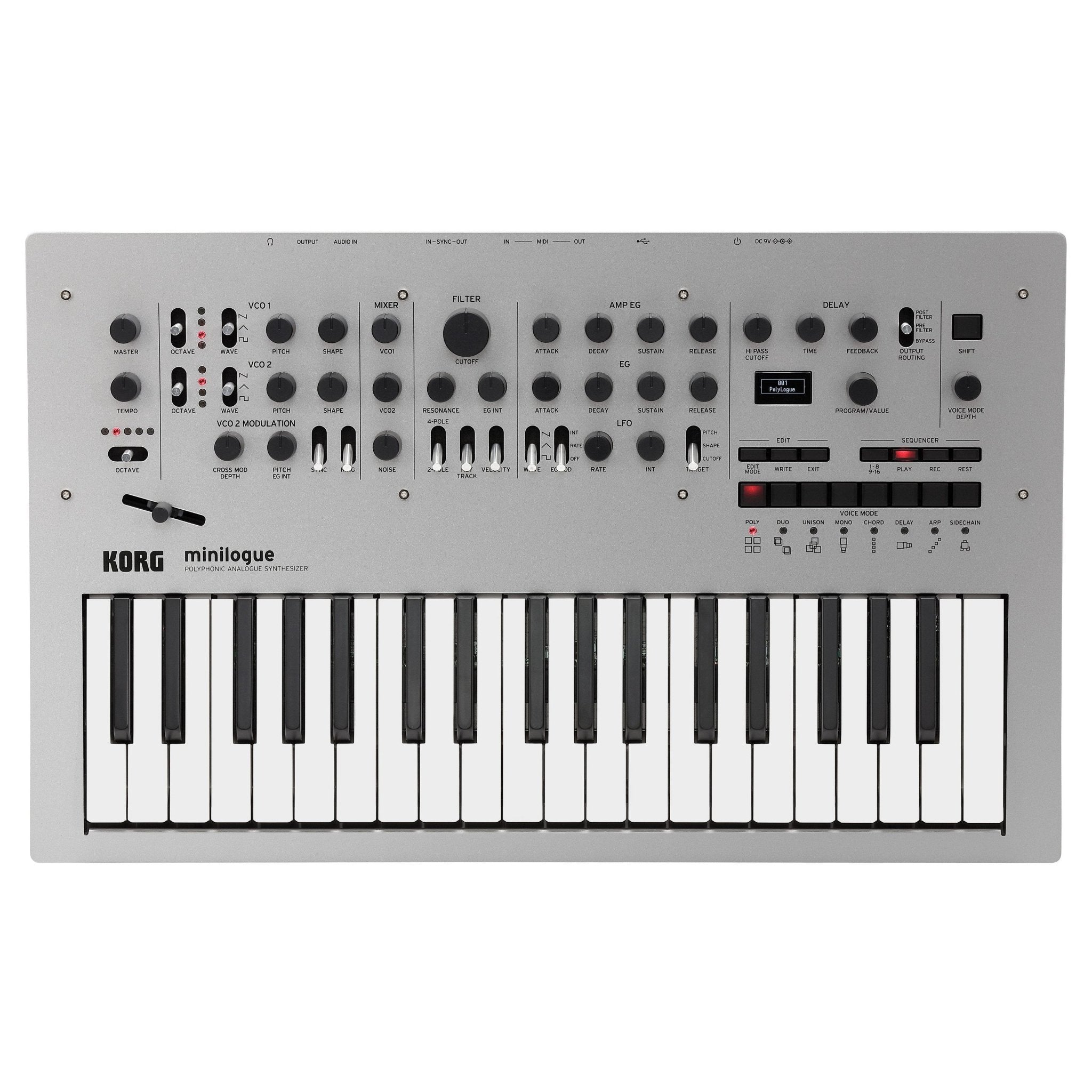

Meet minilogue; the stylish, innovative, 37 slim-key fully programmable analog polyphonic synthesizer. Minilogue’s newly developed analog synthesizer circuit delivers polyphony and full programmability at a great price.
With the minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display.
All of these seamlessly integrated features make minilogue as fun and easy to use as it is powerful. It's the next-generation analog synthesizer for musicians of all types. True analog sound.
The synth circuits for minilogue are all new ground up designs, delivering a synthesizer experience like no other. Unprecedented in this class, it’s a four-voice polyphonic true-analog synth with an interface that's designed for accessibility. Whether you're performing live or producing in the studio, the minilogue is the fastest way for the user to explore and implement real analog synthesis in any situation.

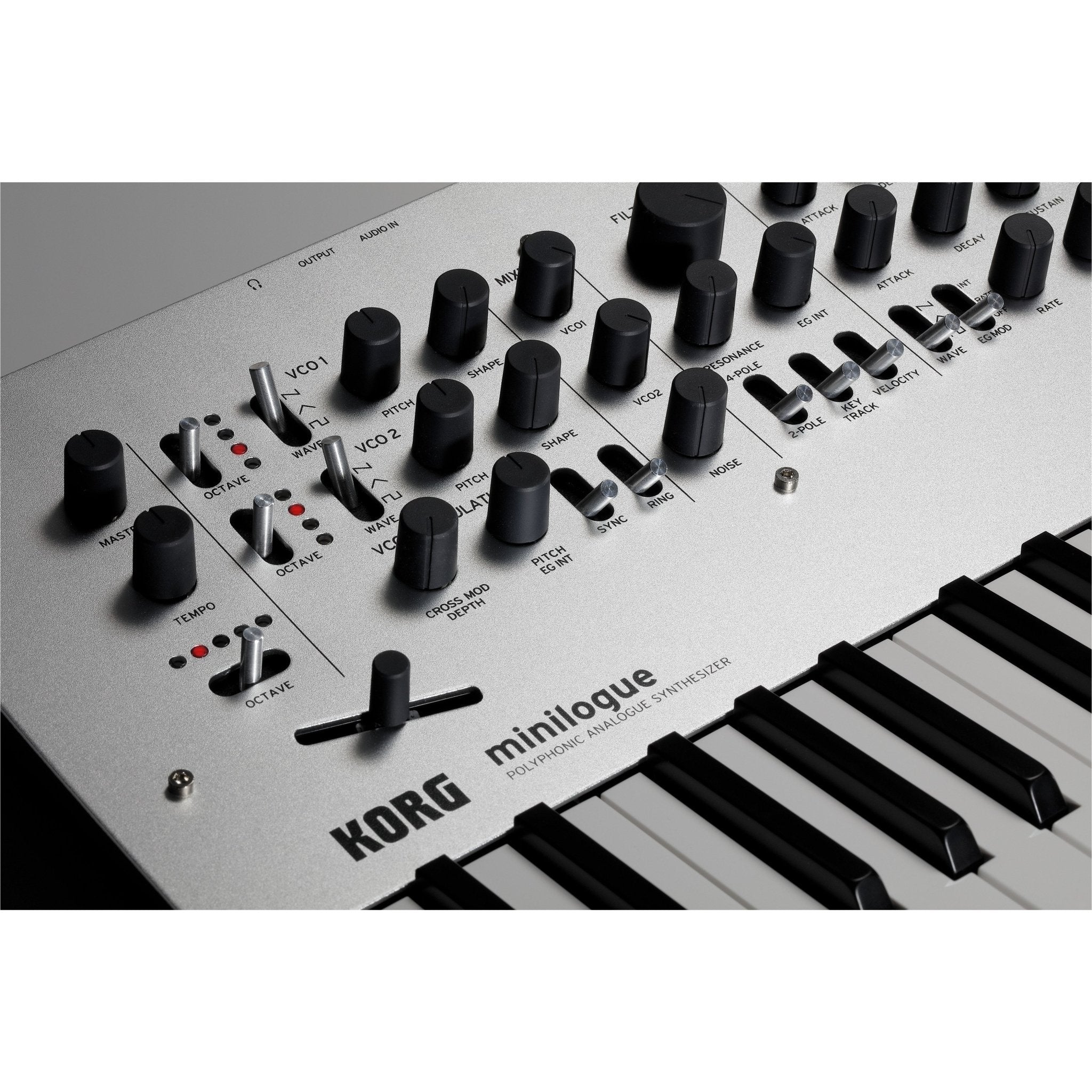

The structure consists of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The minilogue's unique wave shape capability lets you fine tune the oscillators’ harmonics, creating the most divine sounds and compositions.
The minilogue is also equipped with a variety of powerful types of modulation including cross modulation, oscillator sync, and ring modulator, as well as a delay with a high-pass filter. Powerful sound creation and rich variety are the true hallmarks of an analog synthesizer.
Polyphony and Presets – Perfect. minilogue goes beyond analog synths in its price range by adding 200 preset locations. Select a program for instant access to great sounds - - ranging from thick basses to deep pads to brilliant polyphonic leads and atmospheric sounds.

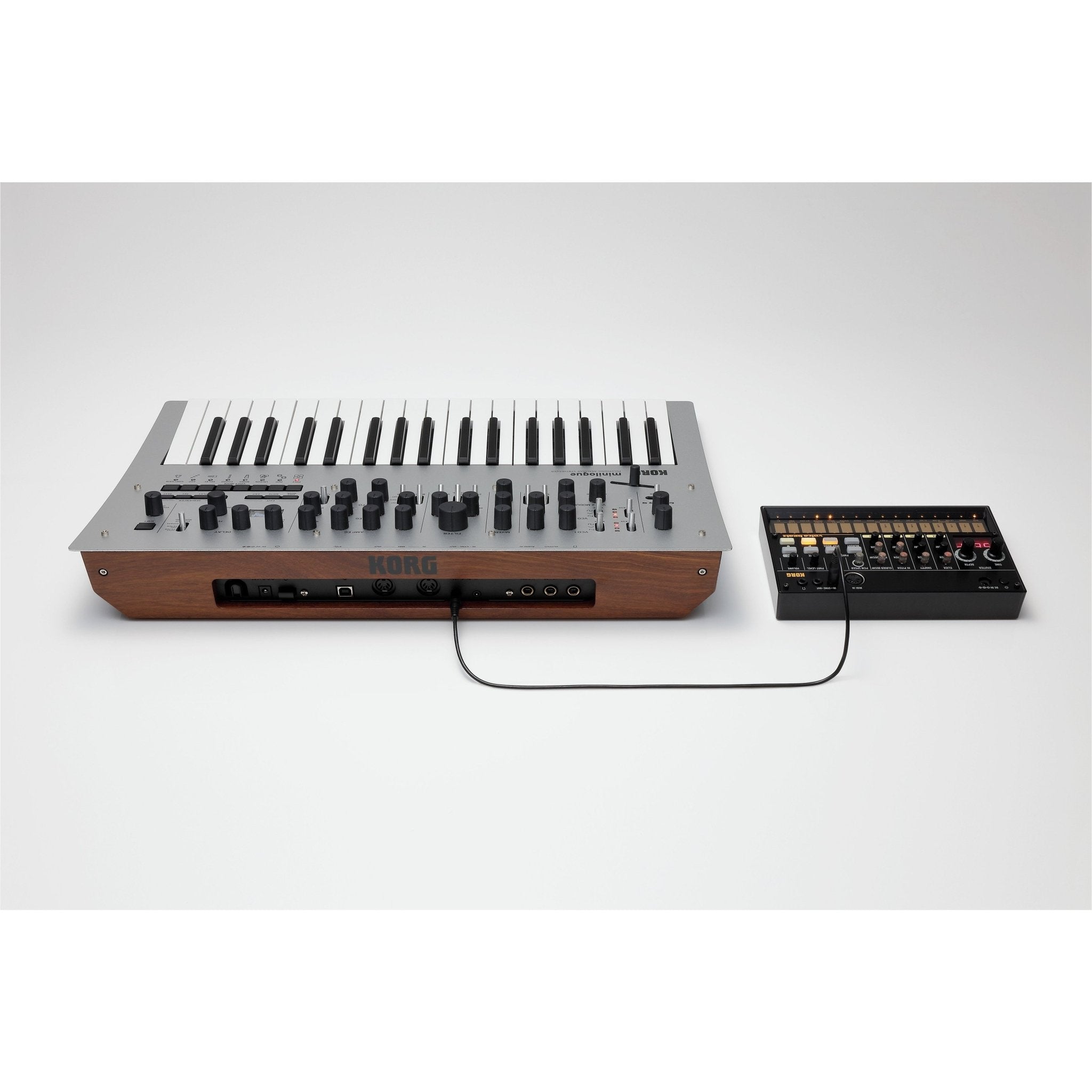

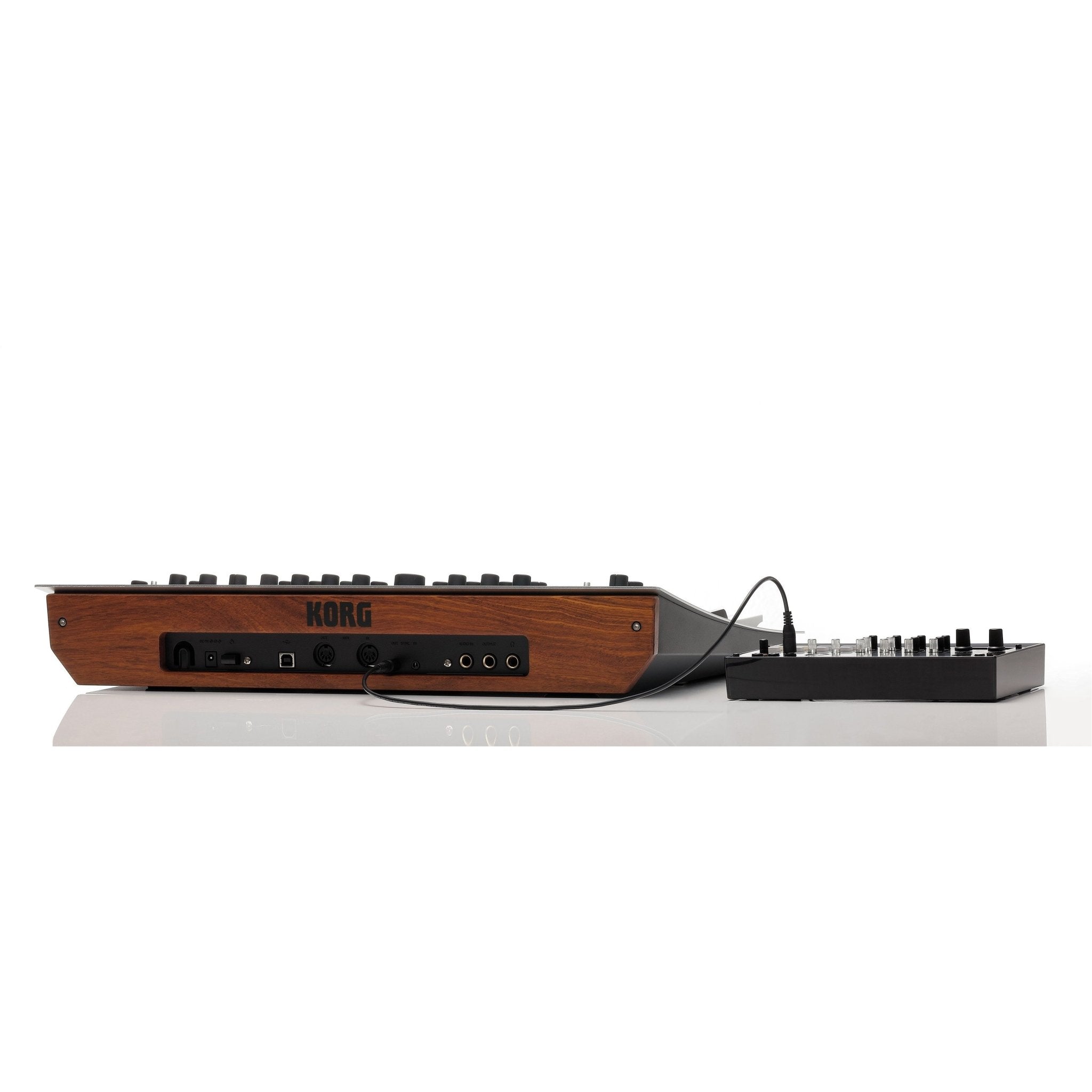

Connect this to a volca series unit, an electribe, or the SQ-1, and experience a session with synchronized sequencer playback. minilogue
- Keyboard: 37-keys (Slim-key, velocity sensitive)
- Sound Generation: Analog synthesis
- Maximum Polyphony: 4 voices
- Program: 200 programs (100 Presets / 100 Users) Each program includes voice mode and sequence data settings.

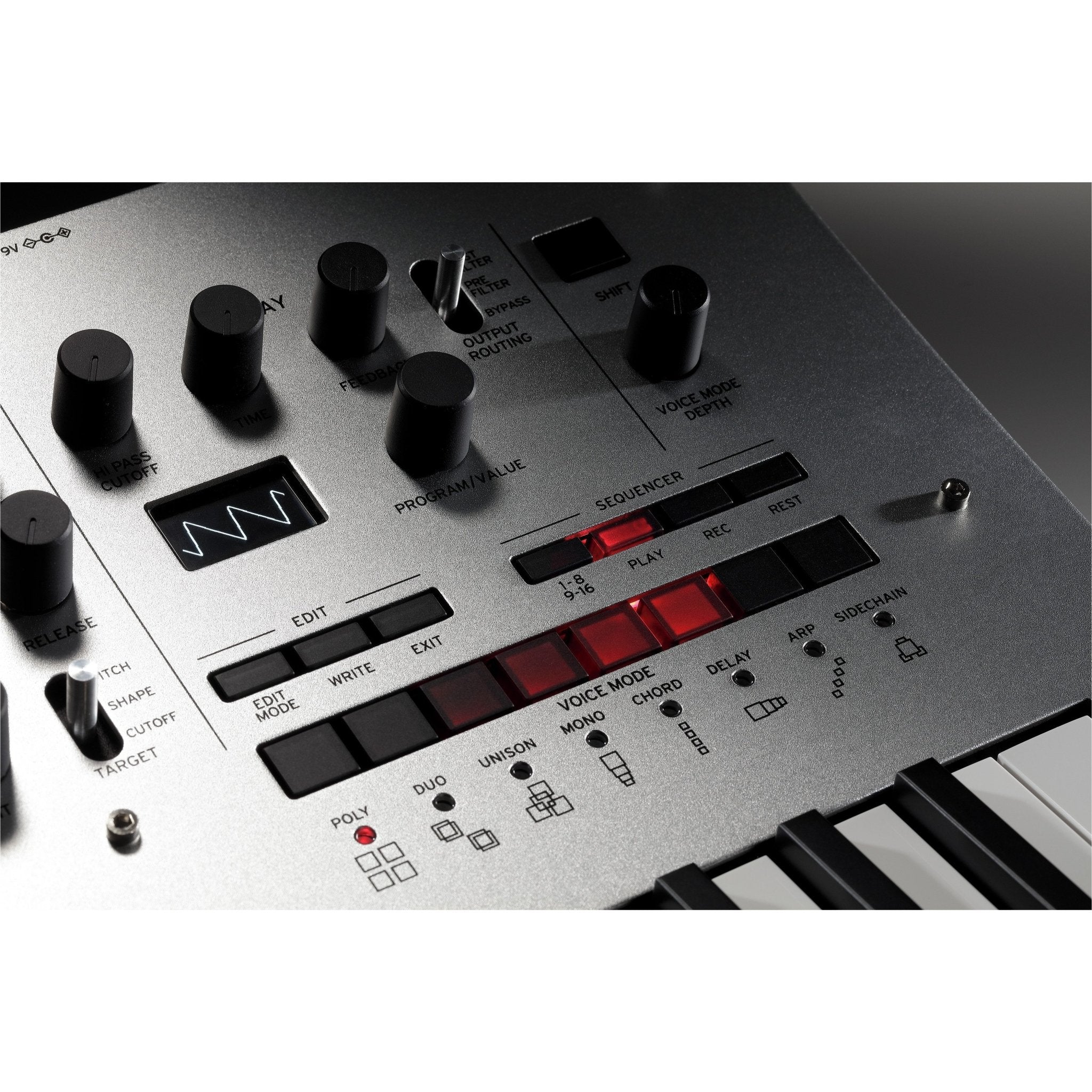

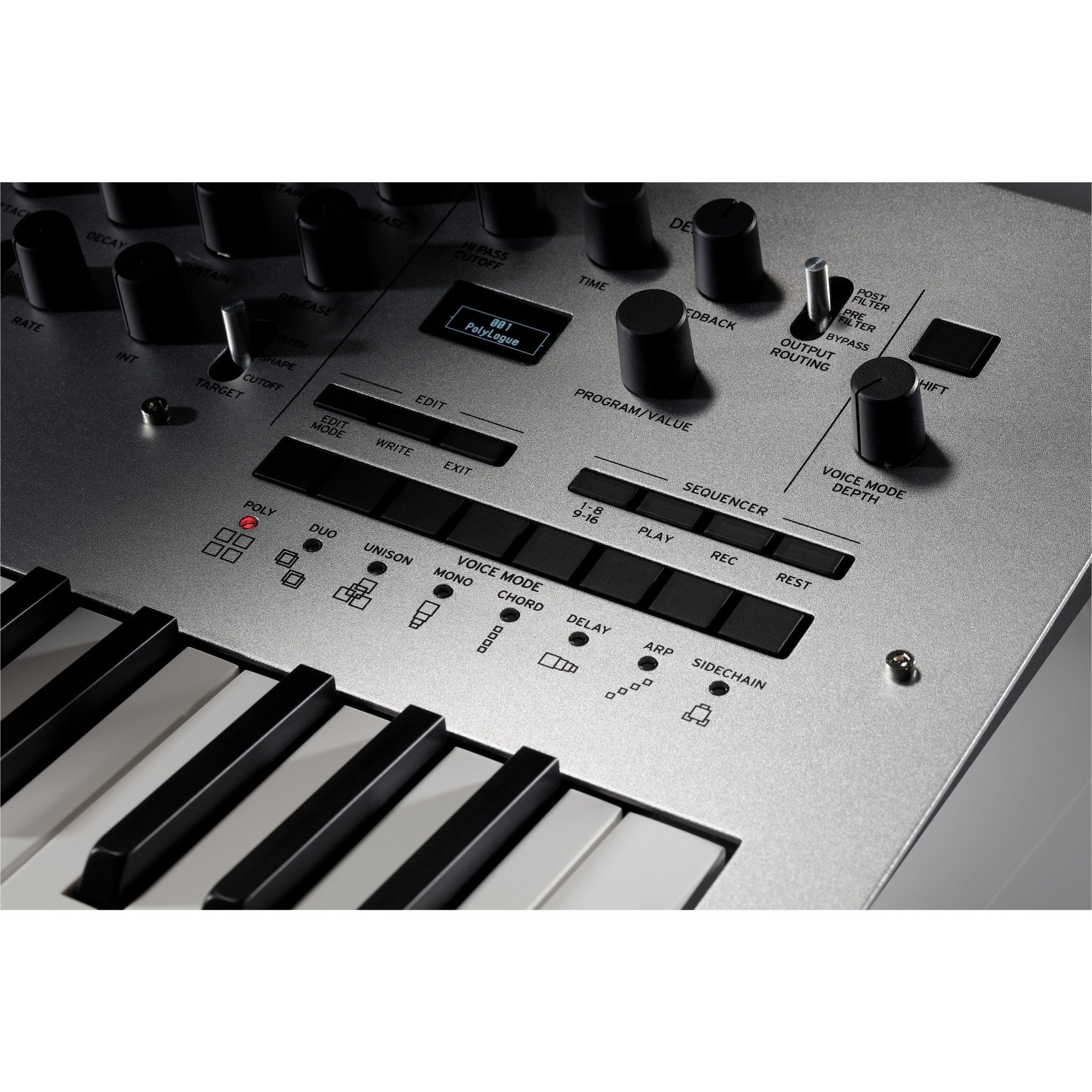

- Up to eight favorite programs can be registered Voice Modes: 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain). VOICE MODE DEPTH can vary different parameters in each mode Main Synthesis Parameters: VCO1: Octave, Wave (Saw, Triangle, Square), Pitch, Shape. VCO2: Octave, Wave (Saw, Triangle, Square), Pitch, Shape. VCO2 MODULATION: Cross Mod Depth, Pitch EG Int, Sync, Ring. MIXER: VCO1, VCO2, Noise. FILTER: Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity. AMP EG: Attack, Decay, Sustain, Release. EG: Attack, Decay, Sustain, Release. LFO: Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff). DELAY: Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
- Sequencer:
- 16-step polyphonic sequencer, Motion sequence can be used on up to four parameters
- Controls: 41 dedicated panel controls deliver immediate parameter access, A slider can control different parameters for each program

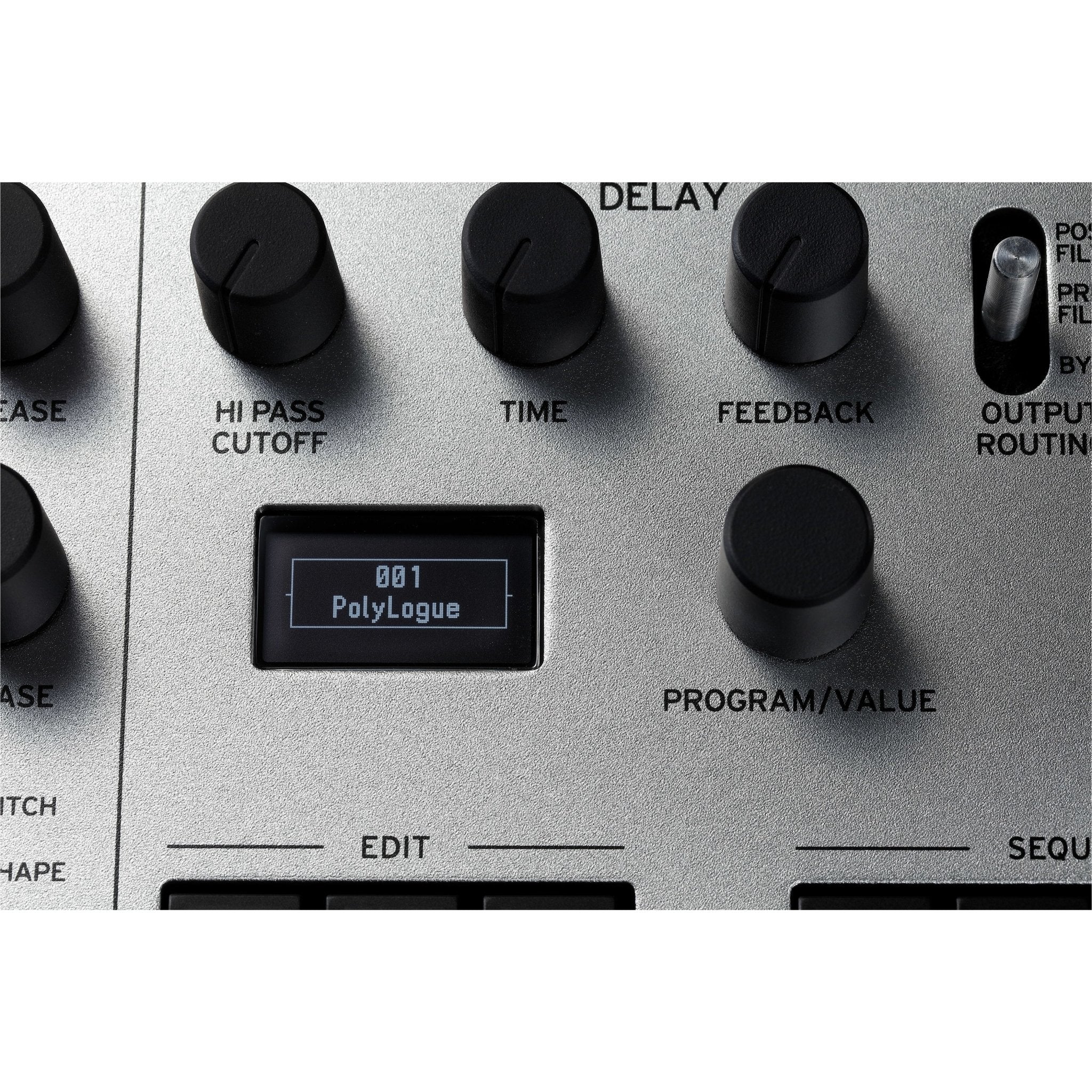

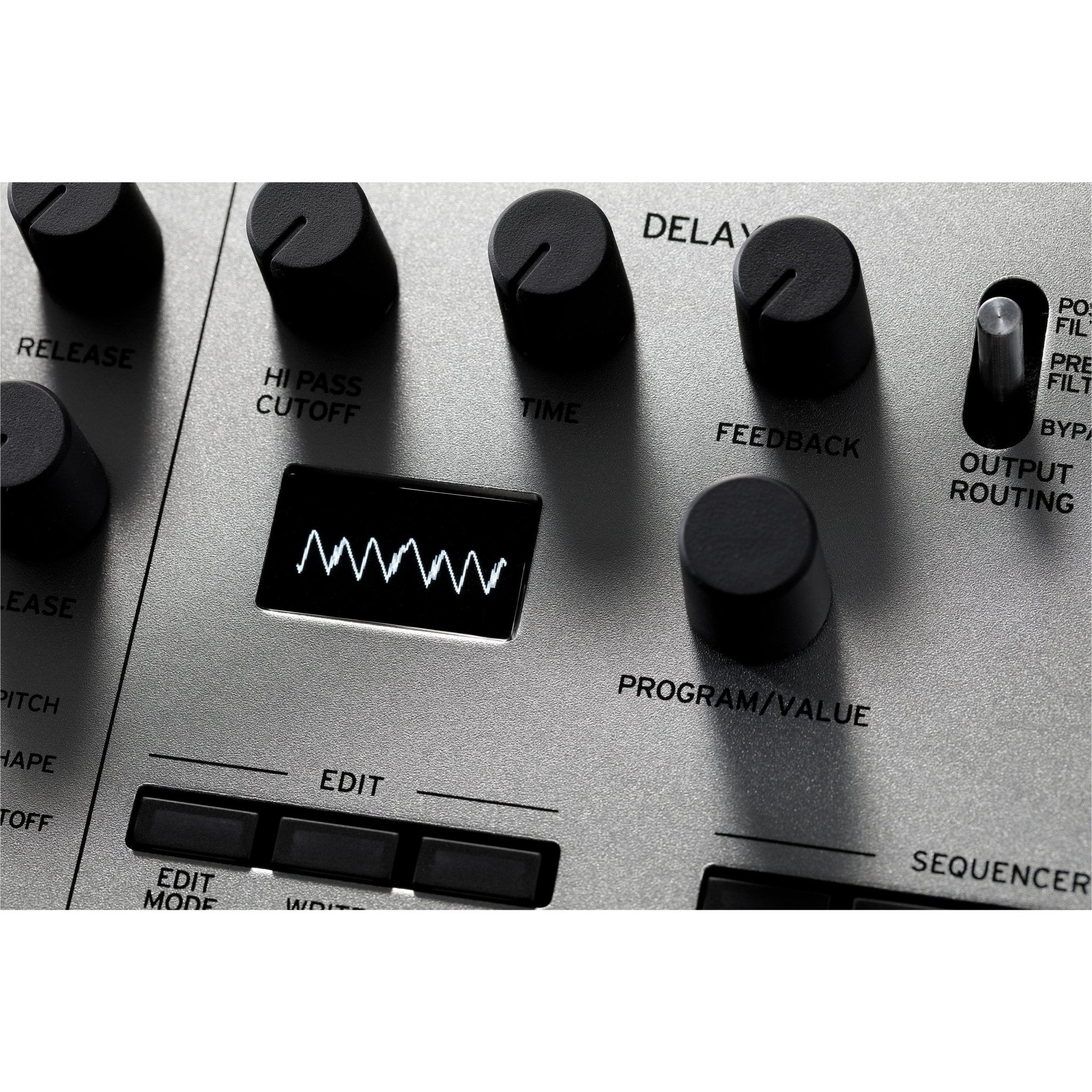

- Display: Real-time OLED oscilloscope provides visual feedback of parameter changes

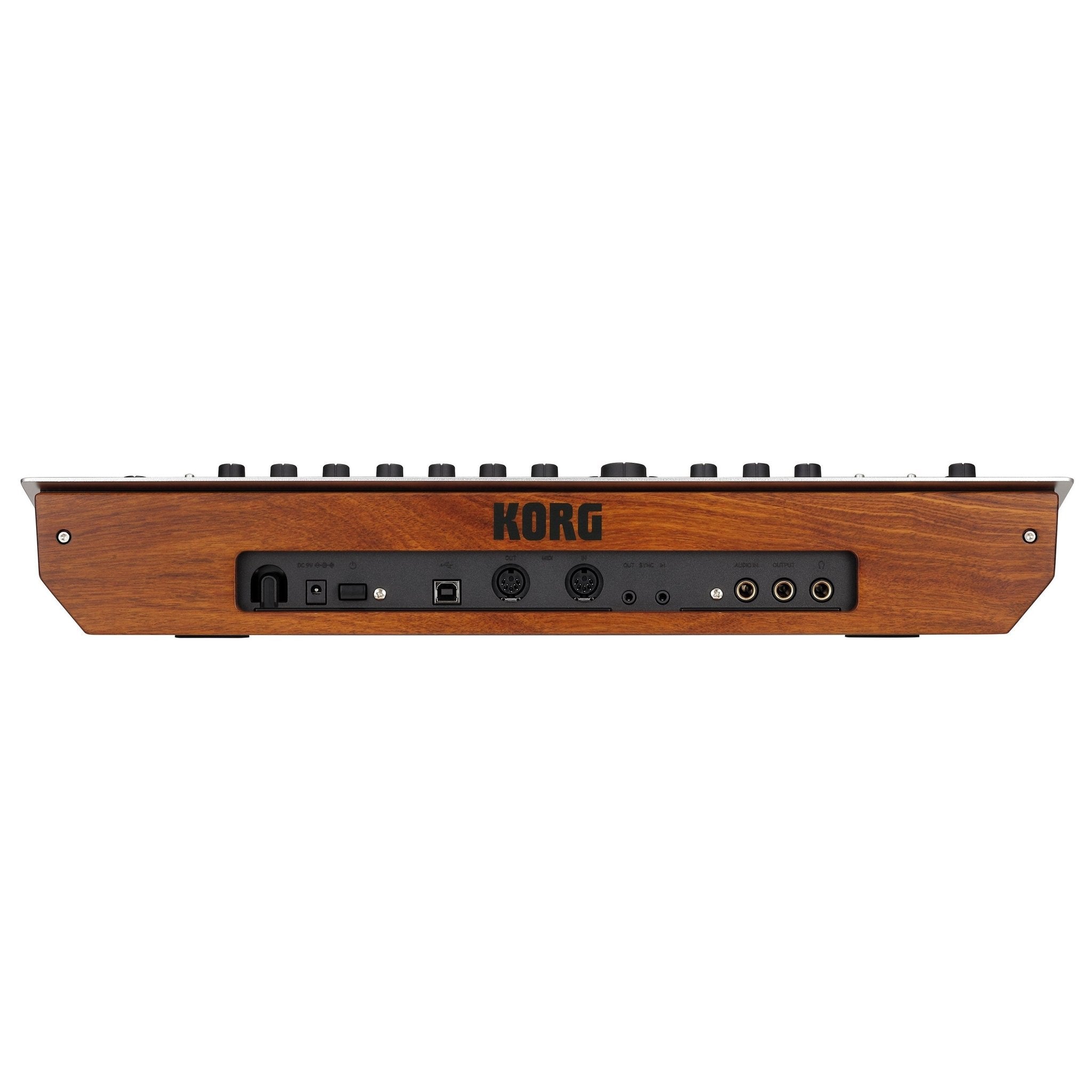

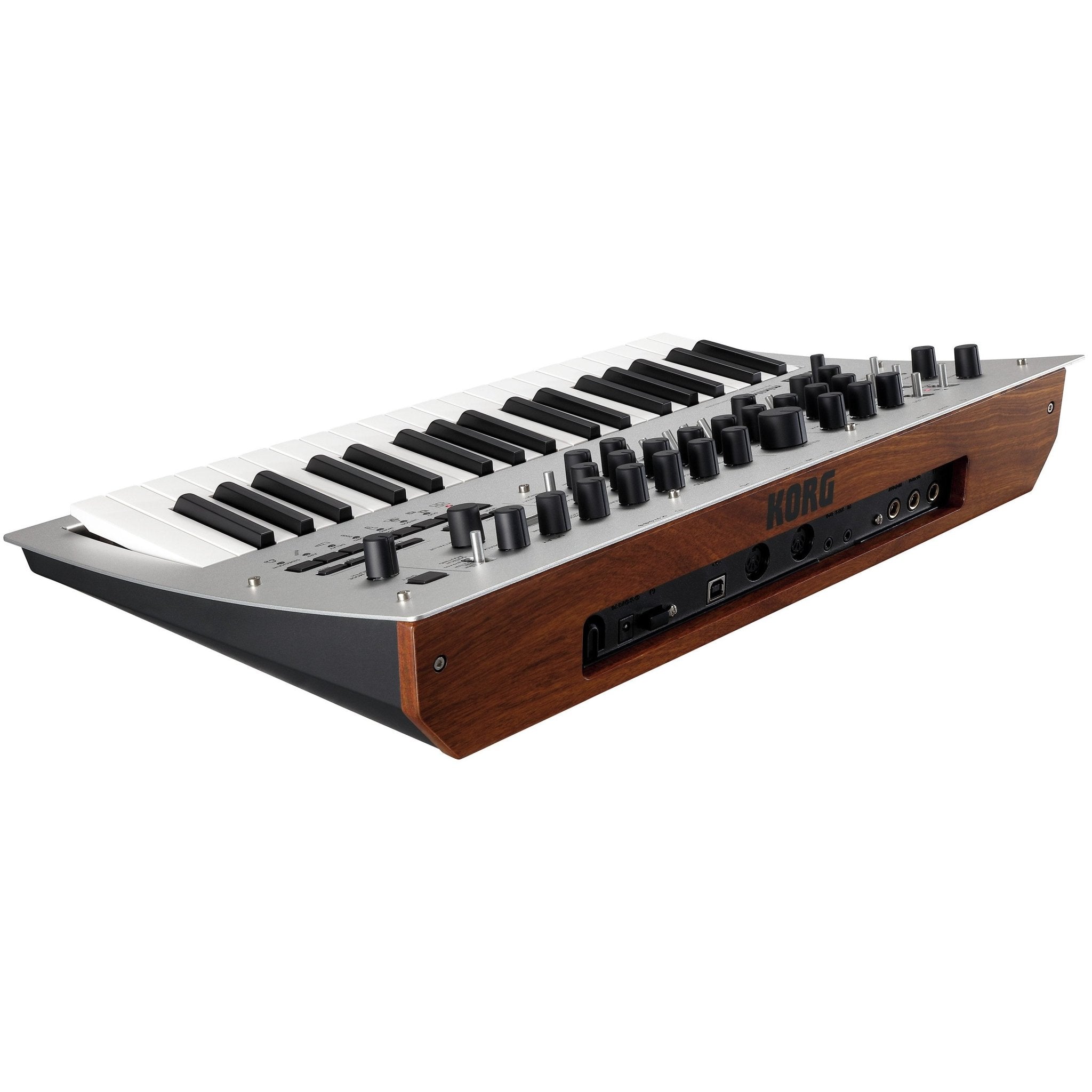

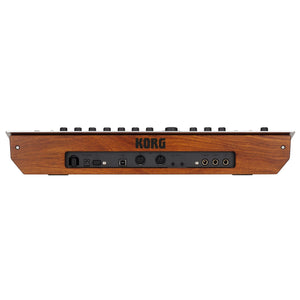

- Connectors: Headphones (6.3mm stereo phone jack) Output (6.3mm monaural phone jack) Audio In (6.3mm monaural phone jack) Sync In (3.5mm monaural mini jack) Sync Out (3.5mm monaural mini jack) MIDI In, MIDI Out, USB Type B
- Power Supply: AC adapter (DC9V) KA350
- Power Consumption: 8W
- Dimensions (W x D x H): 500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
- Weight: 2.8 kg / 6.17 lbs.
- Included Items: AC adapter
